Quick Start Guide: Launching a Simulation with ROS2_UAV Framework

Prerequisites

  • Install Docker and ensure it is running on your system. You will need the nvidia-container-runtime since the simulation requires NVIDIA GPUs.
  • Download the latest QGroundControl to access the necessary modes.

Steps

1. Launch the PX4 SITL Simulation

Go to the tools/docker_scripts folder and start the simulation using the provided custom configuration file:

cd tools/docker_scripts
./launch_simulation.sh -f ../configurations/simulation_config_custom.yaml -b main -a

This command opens a Gazebo window featuring drone models, with the px4_sitl container running in the background.

2. Launch the Control Nodes

Return to the tools/docker_scripts folder and initiate the control nodes using the same configuration file:

cd tools/docker_scripts
./launch_simulation_nodes.sh -f ../configurations/simulation_config_custom.yaml

This action starts the ros2_uav_px4 container, controlling the drones in the background.

3. Retrieve Docker IP Address

Get the IP address of your Docker container running the PX4 SITL:

docker inspect -f '{{range.NetworkSettings.Networks}}{{.IPAddress}}{{end}}' px4_sitl
  1. Open QGroundControl.
  2. Proceed to Application Settings.

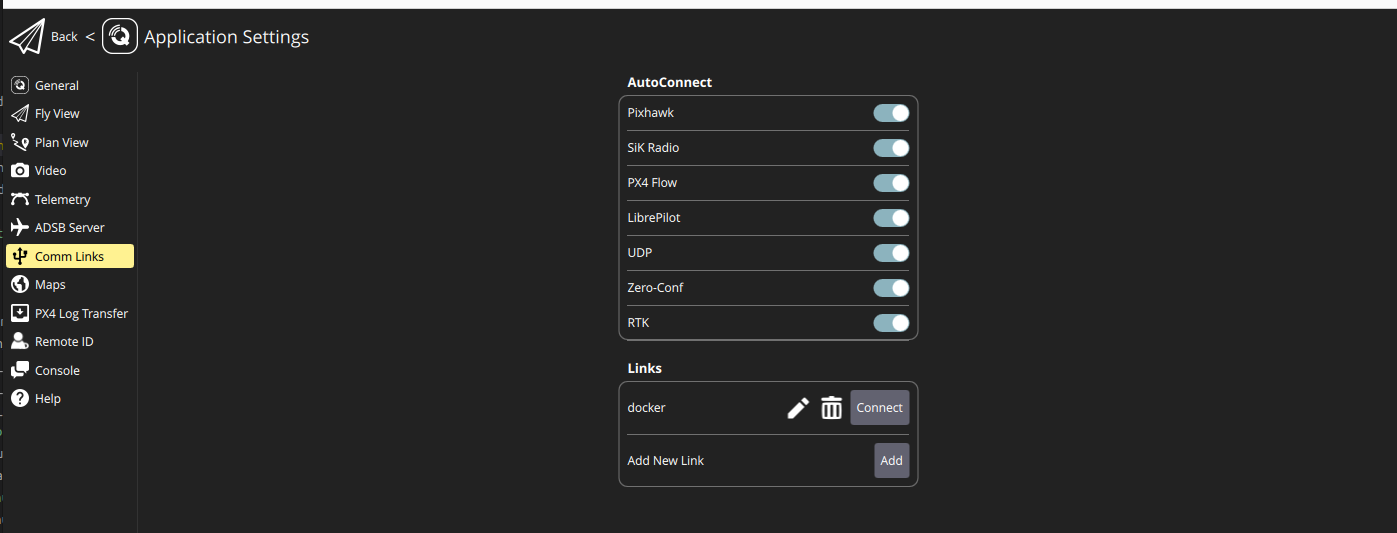

Application Settings

  1. Click Comm Links in the sidebar.
  2. Hit Add.

Add New Link

  1. Select UDP as the Type.
  2. Specify the Port as 18570 + drone_number. For instance, for drone number 1 (namespace /uav1), set it to 18571.
  3. Input the Docker IP you noted earlier into Server Addresses.
  4. Press Add Server.
  5. Click Save.

After setup, choose the newly added link and click Connect to link up with the drone.

5. Selecting the Mode

From the main screen of QGroundControl, pick a mode for your drone, such as Offboard Position. The drone will ascend and hover at a designated altitude, with position control managed by the ros2_uav_px4 container's control node.

6. Sending a Setpoint

cd tools/docker_scripts
./send_setpoint.sh uav0 0 0 2 0

Here, uav0 is the drone's namespace, 0 0 2 represents the x, y, z coordinates, and 0 is the heading.
